Specify C45 and the applicable material standard, together with the required delivery condition. Any proposed equivalent or alternative condition should be reviewed and agreed against the drawing before ordering.
C45 CHROME ROD
C45 chrome rod requirements defined by your drawing, surface specification and intended application.
PRODUCT OVERVIEWPRODUCT DETAILSMYLER
PRODUCT OVERVIEWPRODUCT DETAILSMYLER2026
OUR APPROACH
C45 chrome rod for conventional hydraulic piston rods. Ground, polished and chrome plated, with dimensions and finish matched to your drawing.
The result is an agreed scope for the rod you need: material condition, fit, working surface and the records required for acceptance.
OUR APPROACH
C45 chrome rod for conventional hydraulic piston rods. Ground, polished and chrome plated, with dimensions and finish matched to your drawing.
The result is an agreed scope for the rod you need: material condition, fit, working surface and the records required for acceptance.
TECHNICAL REFERENCE
Product specifications.
| Parameter | Reference value | Application / confirmation |
|---|---|---|
| Material | C45 carbon steel | Source designation EN 10083; agree standard edition and delivery condition. |
| Diameter | 10–160 mm | Confirm the order requirement with your quotation. |
| Diameter tolerance | f7 | Confirm the order requirement with your quotation. |
| Chrome thickness | 150: ≥12 · 250: ≥20 · 500: ≥30 | Raw source minima: units are omitted in the coating-thickness column. Confirm the unit before using these values in an order. |
| Chrome-layer hardness | ≥1000 HV0.1 | Chrome coating only. This value does not describe the core or induction hardened layer. |
| Surface roughness | Ra ≤0.10 · Rt ≤1.00 | Raw source Ra/Rt values; the chrome tables omit their unit. Confirm the unit, test method and sampling length. |
| Ovality | ≤ ½ of the diameter tolerance | Confirm the selected diameter tolerance and measurement method. |
| Straightness | ≤0.2 mm/m | Agree measurement length and support conditions. |
| Microcrack density | ≥6000 microcracks/mm² | Catalogue coating characteristic; not a MYLER inspection result. |
| NSS corrosion reference | 150: R10 150 h / R9 300 h; 250: R10 250 h / R9 500 h; 500: R10 500 h / R9 1000 h | Source finish classes only. Test: ISO 9227; evaluation: ISO 10289. Request order-specific test evidence. |
| Length | Confirm for the order | No universal length is stated in the referenced product table. |
| Chemistry — C / Si / Mn | C 0.42–0.50%; Si ≤0.40%; Mn 0.50–0.80% | Source C45 row, EN 10083 designation. Confirm applicable standard and edition. |
| Chemistry — Cr / Ni / Mo | Cr ≤0.40%; Ni ≤0.40%; Mo ≤0.10% | Confirm the order requirement with your quotation. |
| Chemistry — P / S | P ≤0.035%; S ≤0.035% | Confirm the order requirement with your quotation. |
| Core hardness | Confirm for the delivery condition | Do not use chrome-layer HV0.1 as a core-hardness requirement. |
| Mechanical reference — Ø≤16 mm | Rp0.2 ≥340 MPa · Rm ≥620 MPa · A ≥14% | Confirm the order requirement with your quotation. |
| Mechanical reference — 16–95 mm | Rp0.2 ≥305 MPa · Rm ≥580 MPa · A ≥16% | CBR 150 web table uses 16–95 mm; source thresholds and the 95–100 mm gap need confirmation. |
| Mechanical reference — Ø≥100 mm | Rp0.2 ≥275 MPa · Rm ≥560 MPa · A ≥16% | Source delivery condition is not explicit; confirm before design or purchase. |
| Other reference-family grades | C35 · 20MnV(S)6 · 38MnV(S)6 · X20Cr13 · 310 · 316 | Additional source grades, not equivalents to this product. Ask for separate MYLER availability and grade-specific chemistry/mechanical properties. |
WHAT TO SPECIFY
The specification depends on the part and its application. Confirm the grade, dimensions, chrome surface, end details and inspection requirements for each drawing reference.
Dimensions & fit
02
Provide finished diameter, length and all tolerances affecting fit. Include straightness, roundness and other geometric requirements where they appear on the drawing or are needed for assembly.
Chrome surface
03
State chrome layer and surface finish requirements, including any acceptance limits and inspection method. The coating scope is confirmed with the order rather than inferred from the product name.
Inspection records
04
Identify the dimensional, material and surface records needed for acceptance. The document type, traceability requirements and inspection scope are reviewed against the order specification.
Machining details
05
Include chamfers, threads, holes and other end details on the current drawing. Machining scope, tolerances and any subsequent surface requirements need to be confirmed together.
Drawing review
06
Bring material, dimensions, machining, finish and inspection requirements into one drawing review. Each feature can then be checked against the requested supply condition and any open points recorded before ordering.
WHAT TO SPECIFY
The specification depends on the part and its application. Confirm the grade, dimensions, chrome surface, end details and inspection requirements for each drawing reference.
Material & condition
01
Specify C45 and the applicable material standard, together with the required delivery condition. Any proposed equivalent or alternative condition should be reviewed and agreed against the drawing before ordering.
Dimensions & fit
02
Provide finished diameter, length and all tolerances affecting fit. Include straightness, roundness and other geometric requirements where they appear on the drawing or are needed for assembly.
Chrome surface
03
State chrome layer and surface finish requirements, including any acceptance limits and inspection method. The coating scope is confirmed with the order rather than inferred from the product name.
Inspection records
04
Identify the dimensional, material and surface records needed for acceptance. The document type, traceability requirements and inspection scope are reviewed against the order specification.
Machining details
05
Include chamfers, threads, holes and other end details on the current drawing. Machining scope, tolerances and any subsequent surface requirements need to be confirmed together.
Drawing review
06
Bring material, dimensions, machining, finish and inspection requirements into one drawing review. Each feature can then be checked against the requested supply condition and any open points recorded before ordering.
Review checklist:
Material and conditionDimensions and fitInspection recordsChrome and roughnessMachining and end details
Specification:Per drawing
OUR PROCESS
From first drawing to agreed requirements
Review the requirements in sequence: drawing, material, dimensions, surface and acceptance records. Resolve open points before confirming the order.
StepDrawing review001
Start with the part
Send your drawing, revision, requested quantity and application. Identify the features and operating conditions that influence material selection, surface requirements or inspection.
StepMaterial condition002
Confirm before ordering
Review the C45 designation, applicable standard and requested delivery condition. If an alternative is proposed, check the differences against the drawing and agree the change in writing before ordering.
StepDimensions & ends003
Check the complete geometry
Review diameter, length, fit tolerances, straightness and all specified end features. Include machining requirements and the current drawing revision so the complete geometry can be assessed.
StepSurface & inspection004
Define acceptance criteria
Confirm chrome layer, roughness and the inspection scope needed for the working surface. State the required records and acceptance limits so they form part of the reviewed order specification.
StepOrder confirmation005
Agree the supply scope

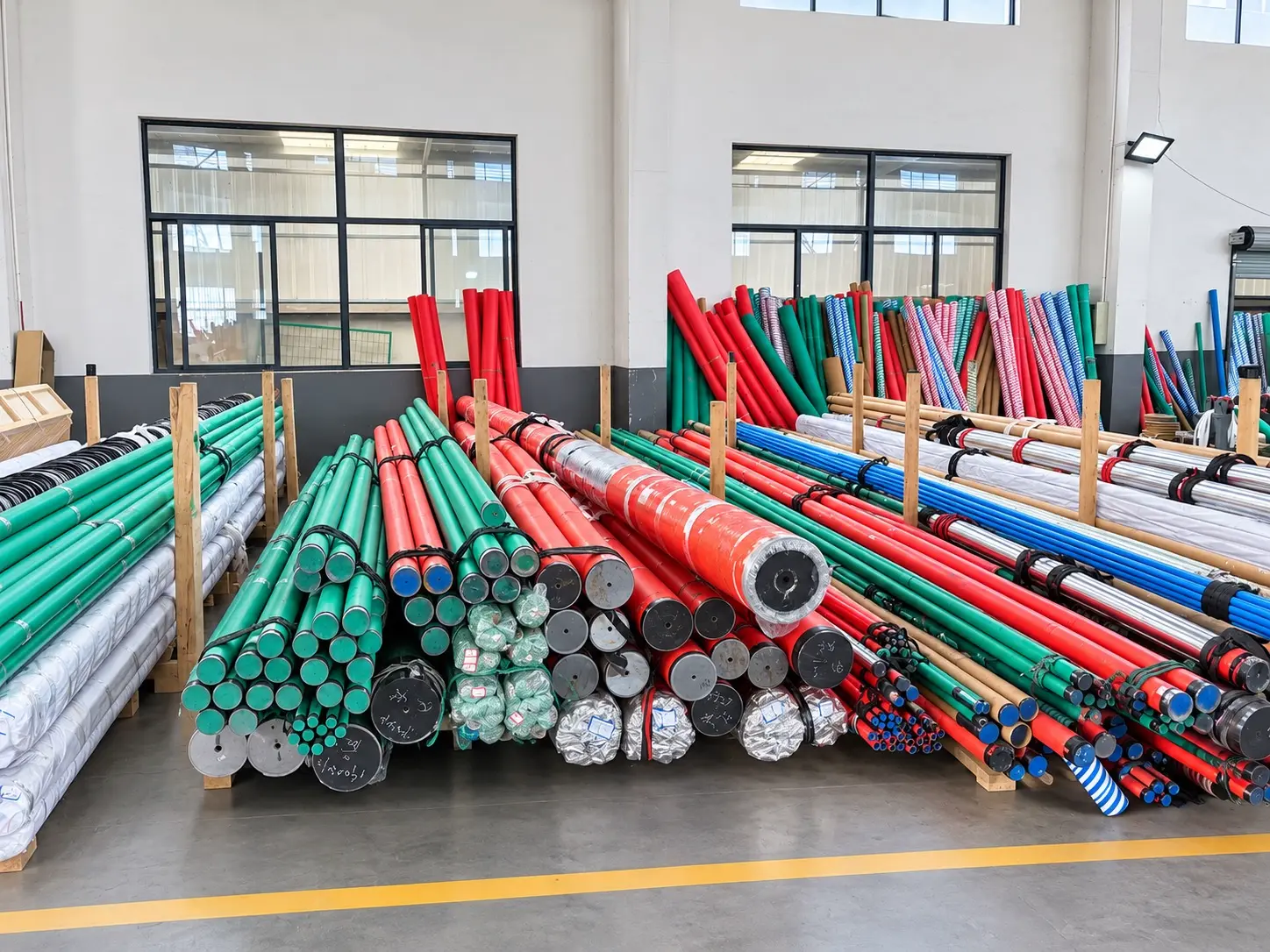

Confirm material, dimensions, finish, quantity and documents in writing. Standard packing is paper wrapping followed by wooden cases to help protect against scratches and knocks. Agree delivery timing and any special packing needs before ordering.
StepRecords & release review006
Keep requirements connected
Check the specified records and identification against the agreed order. Review any changes or deviations before release, and retain the drawing reference for subsequent enquiries.
OUR PROCESS
From first drawing to agreed requirements
Review the requirements in sequence: drawing, material, dimensions, surface and acceptance records. Resolve open points before confirming the order.
StepDrawing review
001Start with the part
Send your drawing, revision, requested quantity and application. Identify the features and operating conditions that influence material selection, surface requirements or inspection.
StepMaterial condition
002Confirm before ordering
Review the C45 designation, applicable standard and requested delivery condition. If an alternative is proposed, check the differences against the drawing and agree the change in writing before ordering.
StepDimensions & ends
003Check the complete geometry
Review diameter, length, fit tolerances, straightness and all specified end features. Include machining requirements and the current drawing revision so the complete geometry can be assessed.
StepSurface & inspection
004Define acceptance criteria
Confirm chrome layer, roughness and the inspection scope needed for the working surface. State the required records and acceptance limits so they form part of the reviewed order specification.
StepOrder confirmation
005Agree the supply scope
Confirm material, dimensions, finish, quantity and documents in writing. Standard packing is paper wrapping followed by wooden cases to help protect against scratches and knocks. Agree delivery timing and any special packing needs before ordering.
StepRecords & release review
006Keep requirements connected
Check the specified records and identification against the agreed order. Review any changes or deviations before release, and retain the drawing reference for subsequent enquiries.
FREQUENTLY ASKED QUESTIONS
Start with the drawing and the required condition.
The chrome-bar reference groups several grades for surface properties. Chemistry, core properties and delivery condition remain grade-specific; 304, C45 and 42CrMo4 are not interchangeable.
Send your drawing and required parameters for review. Material, dimensions, surface requirements and acceptance criteria are confirmed in the quotation.
Send the exact product, material, delivery condition, dimensions, quantity and drawing. Specify tolerances, roughness, straightness, hardness, inspection records and any special packing requirements.
State the required chrome layer, surface roughness and associated acceptance limits. These requirements, their inspection method and the agreed supply scope should be confirmed before ordering.
Need to confirm another requirement?
View all FAQ’sFREQUENTLY ASKED QUESTIONS
What to confirm before placing your order
The chrome-bar reference groups several grades for surface properties. Chemistry, core properties and delivery condition remain grade-specific; 304, C45 and 42CrMo4 are not interchangeable.
Send your drawing and required parameters for review. Material, dimensions, surface requirements and acceptance criteria are confirmed in the quotation.
Send the exact product, material, delivery condition, dimensions, quantity and drawing. Specify tolerances, roughness, straightness, hardness, inspection records and any special packing requirements.
State the required chrome layer, surface roughness and associated acceptance limits. These requirements, their inspection method and the agreed supply scope should be confirmed before ordering.
Need to confirm another requirement?
Check out complete FAQ’sEvery drawing is different
Every detail matters
C45 chrome rod enquiries start with the material condition, dimensions and working surface specified for your part. Bring the current drawing and quantity into the review.
Then confirm machining, inspection records and packing requirements together.
